Concrete Coated Pipe

Description

Type:Concrete Coated Pipe, Concrete Weight Coating

Application: Used for natural gas, petroleum, water & sewage, and pipe systems

Specification: OD: 219mm~2020mm

                          WT: 5mm~25mm

                          LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr

Coating Standard:DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc.

Pipe Type: Submerged Arc Welded (LSAW/SSAW), Electric Resistance Welded

End:Plain End/Bevelled End, Burr Removed

Coating Thickness: Three Layer Polyethylene Coating (2mm~4.5mm)

Packing: Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

Specification

Concrete Weight Coating Pipes (diameter ≥219mm) are generally used in the construction of marine pipelines, especially in the transportation of marine crude oil. Due to the buoyancy of the steel pipe, the depth of the steel pipe dive is very limited, which cannot meet the actual use requirements. Adding the weight of the concrete layer to the outer layer of the steel pipe can greatly increase the weight of the steel pipe itself, and solve the problem of insufficient depth of the steel pipe. It can also play a good role in protecting the outer surface of the steel pipe.

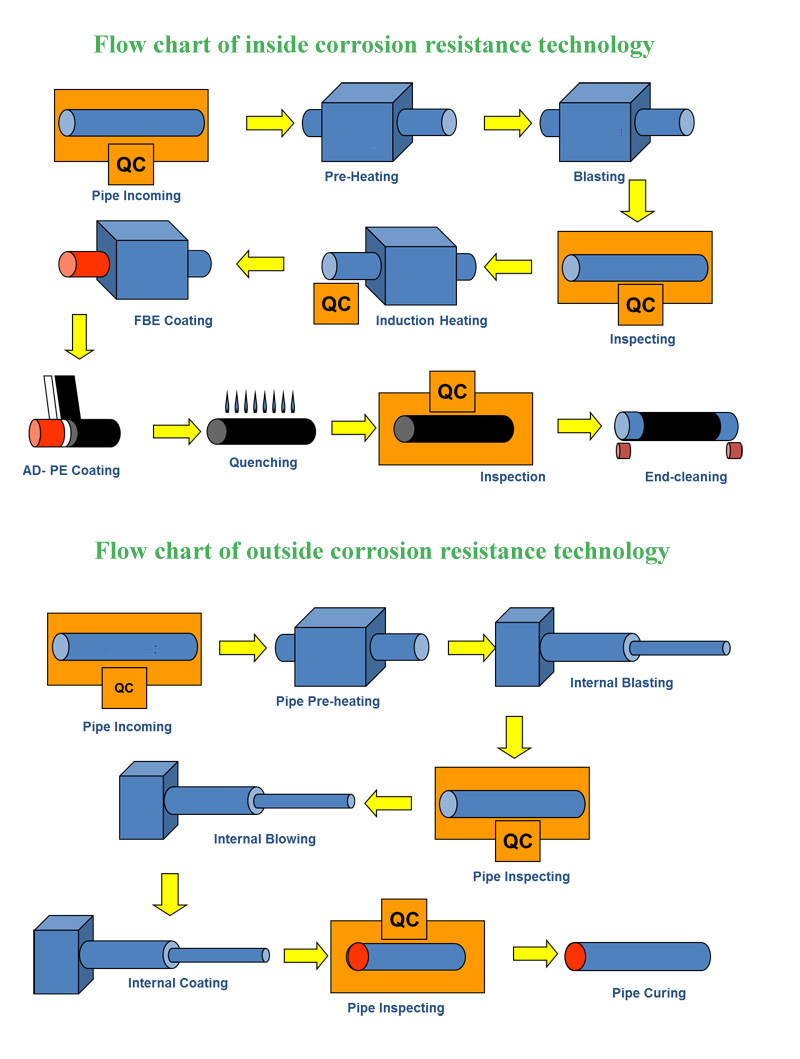

Production process

Packaging pictures
