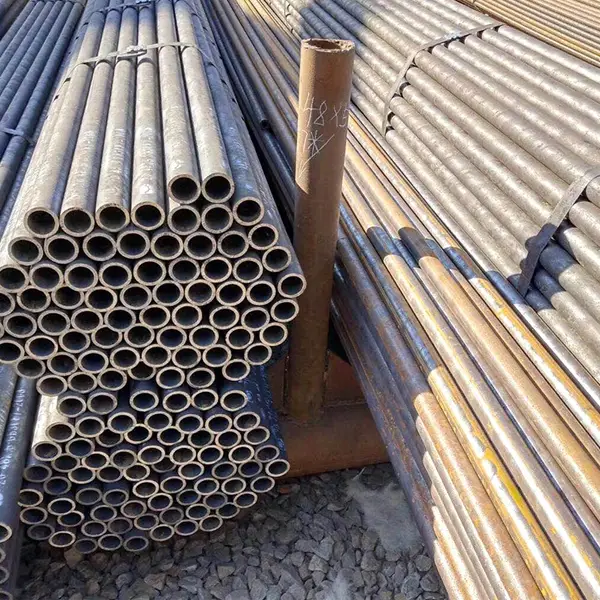

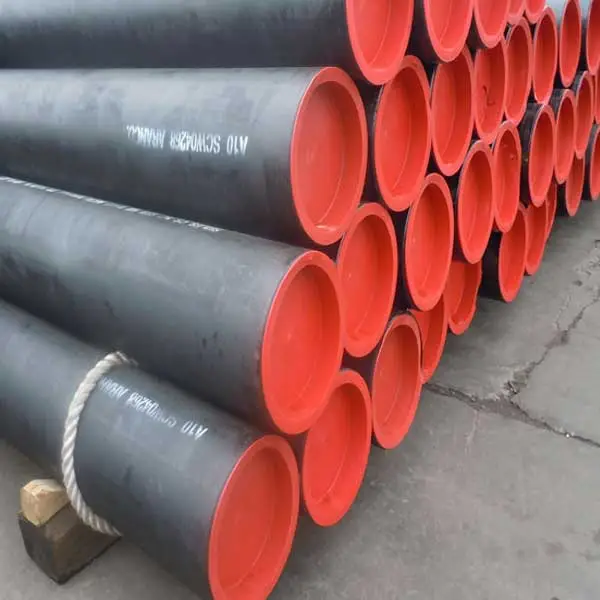

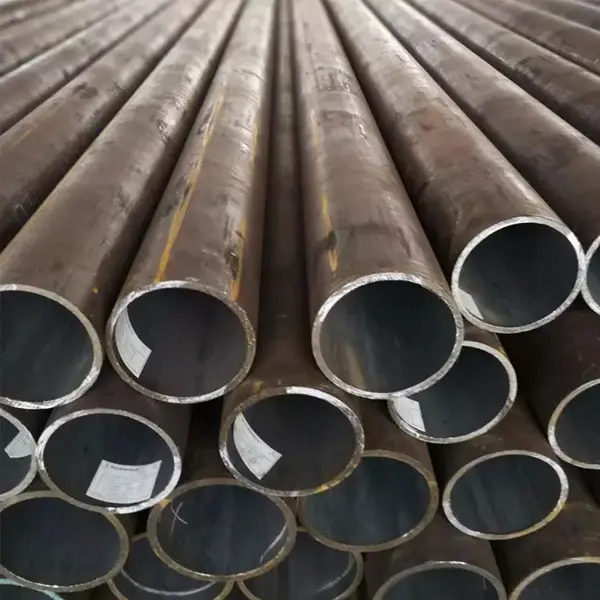

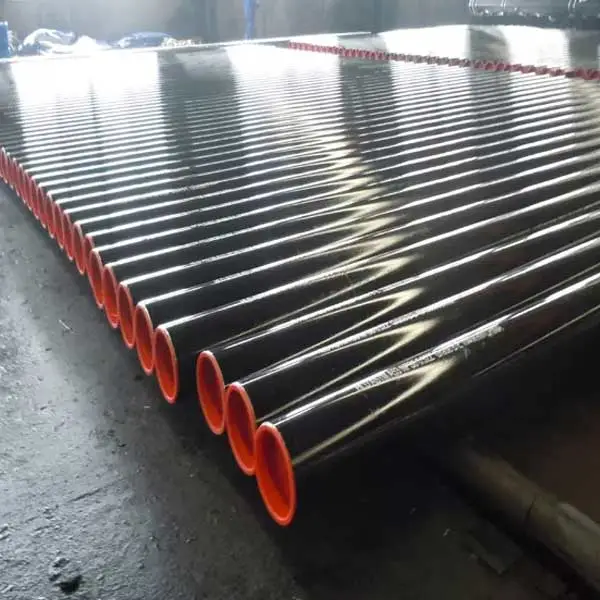

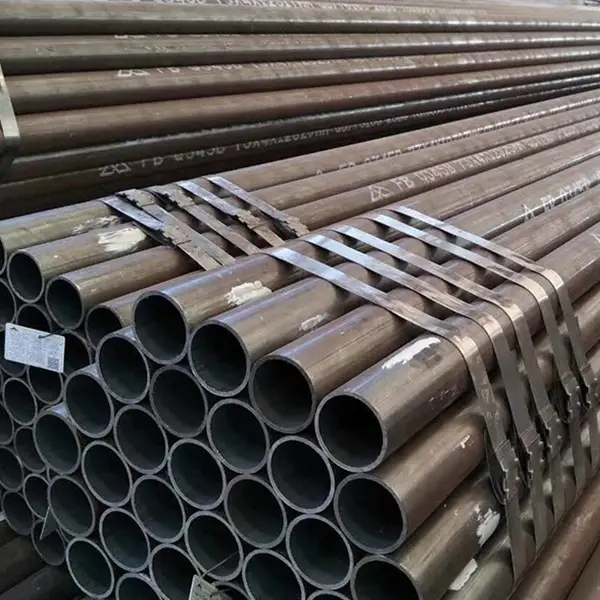

Product Type:Low temperature pipe,Low Temperature Alloy Steel Tube,Seamless Low temperature pipe,Carbon Steel Seamless Low Temperature
Specifiction:
Product Type:Low Temperature Pipe
Size:
Outer diameter(OD): 73-630mm
Wall thickness(WT): 6-35mm
LENGTH:Single Random, Double Random, Cut Length
Application:In Refineries, Power Plants, Boilers, Heat Exchangers, Condensers etc.
Pipe Standard:ASTM A333/ASME SA333
Heat Treatment:
Annealed: Bright Annealed,Spheroidize Annealed, Normalized, Stress Relieved, Cold Finished, Quenched And Tempered
1. ASTM A333 Chemical Composition Requirements
|
Chemical Composition of ASTM A333 |
|||||||||
|
Element |
Grade 1, % |
Grade 3, % |
Grade 4, % |
Grade 6, % |
Grade 7, % |
Grade 8, % |
Grade 9, % |
Grade 10, % |
Grade 11, % |
|
C |
0.30 |
0.19 |
0.12 |
0.30 |
0.19 |
0.13 |
0.20 |
0.20 |
0.10 |
|
Mn |
0.40–1.06 |
0.31–0.64 |
0.50–1.05 |
0.29–1.06 |
0.90 |
0.90 |
0.40–1.06 |
1.15–1.50 |
0.60 |
|
P |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.035 |
0.025 |
|
S |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.015 |
0.025 |
|
Si |
... |
0.18–0.37 |
0.08–0.37 |
0.10 min |
0.13–0.32 |
0.13–0.32 |
... |
0.10–0.35 |
0.35 |
|
Ni |
... |
3.18–3.82 |
0.47–0.98 |
0.40 |
2.03–2.57 |
8.40–9.60 |
1.60–2.24 |
0.25 |
35.0–37.0 |
|
Cr |
... |
... |
0.44–1.01 |
0.30 |
... |
... |
... |
0.15 |
0.50 |
|
Cu |
... |
... |
0.40–0.75 |
0.40 |
... |
... |
0.75–1.25 |
0.15 |
... |
|
Al |
... |
... |
0.04–0.30 |
... |
... |
... |
... |
0.06 |
... |
|
V |
... |
... |
... |
0.08 |
... |
... |
... |
0.12 |
... |
|
Cb |
... |
... |
... |
0.02 |
... |
... |
... |
0.05 |
... |
|
Mo |
... |
... |
... |
0.12 |
... |
... |
... |
0.05 |
0.50 |
|
Co |
... |
... |
... |
... |
... |
... |
... |
... |
0.50 |
*For Grade 1 and 6, each reduction of 0.01% C below 0.30%, an increase of 0.05 % Mn above 1.06 % would be permitted to a max. of 1.35%.
*For Grade 6, the limit for columbium may be increased up to 0.05 % on heat analysis and 0.06 % on product analysis.
*Generally, the carbon equivalent C.E = [C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15] shall not exceed 0.43% by heat analysis.
2. ASTM A333 Mechanical Properties
|
ASTM A333 |
Tensile Strength, min. |
Yield Strength, min. |
Elongation %, min. |
|||
|
Grade |
psi |
MPa |
psi |
MPa |
Longitudinal |
Transverse |
|
Grade 1 |
55 000 |
380 |
30 000 |
205 |
35 |
25 |
|
Grade 3 |
65 000 |
450 |
35 000 |
240 |
30 |
20 |
|
Grade 4 |
60 000 |
415 |
35 000 |
240 |
30 |
16.5 |
|
Grade 6 |
60 000 |
415 |
35 000 |
240 |
30 |
16.5 |
|
Grade 7 |
65 000 |
450 |
35 000 |
240 |
30 |
22 |
|
Grade 8 |
100 000 |
690 |
75 000 |
515 |
22 |
... |
|
Grade 9 |
63 000 |
435 |
46 000 |
315 |
28 |
... |
|
Grade 10 |
80 000 |
550 |
65 000 |
450 |
22 |
... |
|
Grade 11 |
65 000 |
450 |
35 000 |
240 |
18 |
... |
*The elongation values are furnished on the basis of standard round 2 inch or 50 mm(or 4D) specimens.
*Elongation of Grade 11 is for all walls and small sizes tested in full section.
3. Charpy V-notch Impact Tests
|
Impact Requirements for Grades 1, 3, 4, 6, 7, 9, 10, and 11 |
||||
|
Size of Specimen |
*A |
*B |
||
|
mm |
ft·lbf |
J |
ft·lbf |
J |
|
10 by 10 |
13 |
18 |
10 |
14 |
|
10 by 7.5 |
10 |
14 |
8 |
11 |
|
10 by 6.67 |
9 |
12 |
7 |
9 |
|
10 by 5 |
7 |
9 |
5 |
7 |
|
10 by 3.33 |
5 |
7 |
3 |
4 |
|
10 by 2.5 |
4 |
5 |
3 |
4 |
*A denotes minimum average notched bar impact value of each set of three specimens.
*B denotes minimum notched bar impact value of one specimen only of a set.
|
Minimum Impact Test Temperature of ASTM A333 |
||
|
Grade |
°F |
°C |
|
1 |
-50 |
-45 |
|
3 |
-150 |
-100 |
|
4 |
-150 |
-100 |
|
6 |
-50 |
-45 |
|
7 |
-100 |
-75 |
|
8 |
-320 |
-195 |
|
9 |
-100 |
-75 |
|
10 |
-75 |
-60 |
|
11 |
-320 |
-195 |
* Impact tests specified for temperatures lower than 70 °F [20 °C] should be made with precautions.
|
NPS |
Outside Diameter |
ASTM A333 Grade 6 Carbon Steel Seamless Pipes Schedule |
||||||||||||
|
SCH 10 |
SCH 20 |
SCH 30 |
SCH STD |
SCH 40 |
SCH 60 |
SCH XS |
SCH 80 |
SCH 100 |
SCH 120 |
SCH 140 |
SCH 160 |
SCH XXS |
||
|
Wall Thickness (in) |
||||||||||||||
|
1/8 |
0.405 |
0.068 |
0.068 |
0.095 |
0.095 |
|||||||||
|
1/4 |
0.540 |
0.088 |
0.088 |
0.119 |
0.119 |
|||||||||
|
3/8 |
0.675 |
0.091 |
0.091 |
0.126 |
0.126 |
|||||||||
|
1/2 |
0.840 |
0.109 |
0.109 |
0.147 |
0.147 |
0.187 |
0.294 |
|||||||
|
3/4 |
1.050 |
0.113 |
0.113 |
0.154 |
0.154 |
0.219 |
0.308 |
|||||||
|
1 |
1.315 |
0.133 |
0.133 |
0.179 |
0.179 |
0.250 |
0.358 |
|||||||
|
1 1/4 |
1.660 |
0.140 |
0.140 |
0.191 |
0.191 |
0.250 |
0.382 |
|||||||
|
1 1/2 |
1.900 |
0.145 |
0.145 |
0.200 |
0.200 |
0.281 |
0.400 |
|||||||
|
2 |
2.375 |
0.154 |
0.154 |
0.218 |
0.218 |
0.344 |
0.436 |
|||||||
|
2 1/2 |
2.875 |
0.203 |
0.203 |
0.276 |
0.276 |
0.375 |
0.552 |
|||||||
|
3 |
3.500 |
0.216 |
0.216 |
0.300 |
0.300 |
0.438 |
0.600 |
|||||||
|
3 1/2 |
4.000 |
0.226 |
0.226 |
0.318 |
0.318 |
|||||||||
|
4 |
4.500 |
0.237 |
0.237 |
0.337 |
0.337 |
0.438 |
0.531 |
0.674 |
||||||
|
5 |
5.563 |
0.258 |
0.258 |
0.375 |
0.375 |
0.500 |
0.625 |
0.750 |
||||||
|
6 |
6.625 |
0.280 |
0.280 |
0.432 |
0.432 |
0.562 |
0.719 |
0.864 |
||||||
|
8 |
8.625 |
0.250 |
0.277 |
0.322 |
0.322 |
0.406 |
0.500 |
0.500 |
0.594 |
0.719 |
0.812 |
0.906 |
0.875 |
|
|
10 |
10.750 |
0.250 |
0.307 |
0.365 |
0.365 |
0.500 |
0.500 |
0.594 |
0.719 |
0.844 |
1.000 |
1.125 |
1.000 |
|
|
12 |
12.750 |
0.250 |
0.330 |
0.375 |
0.406 |
0.562 |
0.500 |
0.688 |
0.844 |
1.000 |
1.125 |
1.312 |
1.000 |
|
|
14 |
14.000 |
0.250 |
0.312 |
0.375 |
0.375 |
0.438 |
0.594 |
0.500 |
0.750 |
0.938 |
1.094 |
1.250 |
1.406 |
|
|
16 |
16.000 |
0.250 |
0.312 |
0.375 |
0.375 |
0.500 |
0.656 |
0.500 |
0.844 |
1.031 |
1.219 |
1.438 |
1.594 |
|
|
18 |
18.000 |
0.250 |
0.312 |
0.438 |
0.375 |
0.562 |
0.750 |
0.500 |
0.938 |
1.156 |
1.375 |
1.562 |
1.781 |
|
|
20 |
20.000 |
0.250 |
0.375 |
0.500 |
0.375 |
0.594 |
0.812 |
0.500 |
1.031 |
1.281 |
1.500 |
1.750 |
1.969 |
|
|
22 |
22.000 |
0.250 |
0.375 |
0.500 |
0.375 |
0.875 |
0.500 |
1.125 |
1.375 |
1.625 |
1.875 |
2.125 |
||
|
24 |
24.000 |
0.250 |
0.375 |
0.562 |
0.375 |
0.688 |
0.969 |
0.500 |
1.219 |
1.531 |
1.812 |
2.062 |
2.344 |
|
|
30 |
30.000 |
0.312 |
0.500 |
0.625 |
0.375 |
0.500 |
||||||||
|
32 |
32.000 |
0.312 |
0.500 |
0.625 |
0.375 |
0.688 |
||||||||
|
34 |
34.000 |
0.312 |
0.500 |
0.625 |
0.375 |
0.688 |
||||||||
|
36 |
36.000 |
0.312 |
0.500 |
0.625 |
0.375 |
0.750 |
||||||||
|
42 |
42.000 |
0.500 |
0.625 |
0.375 |
0.750 |
|||||||||
If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
|
