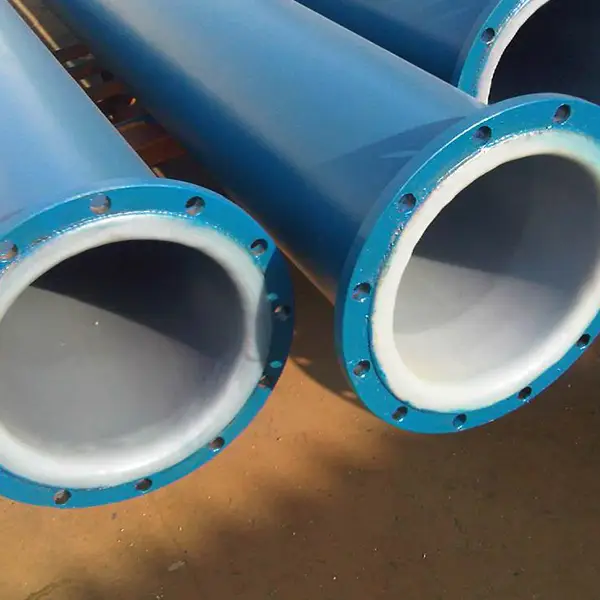

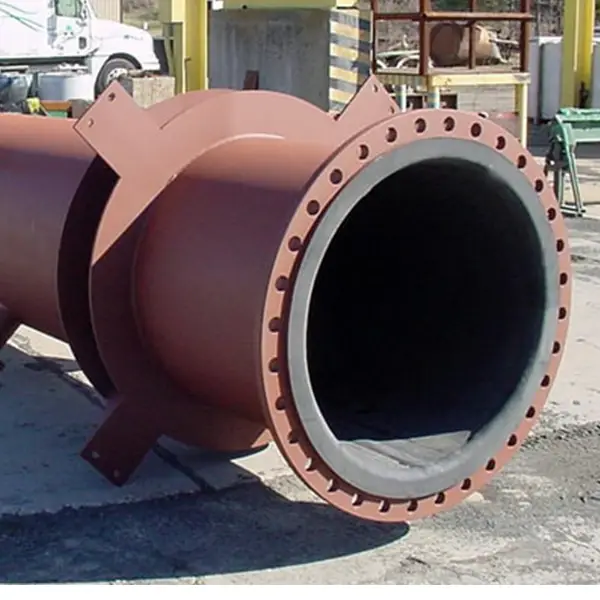

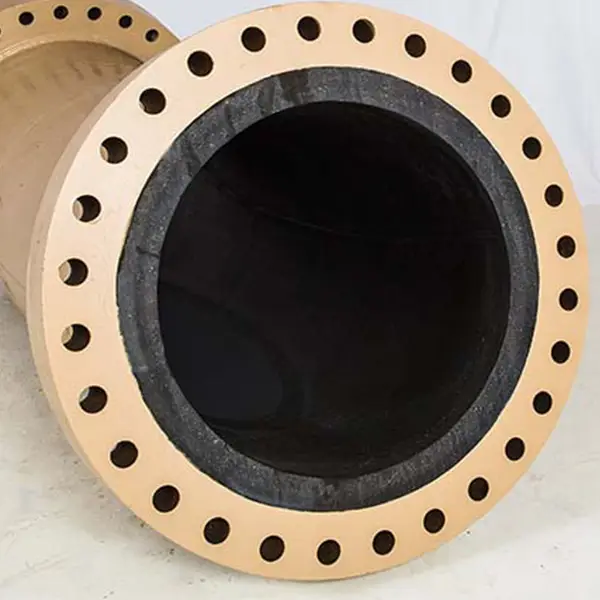

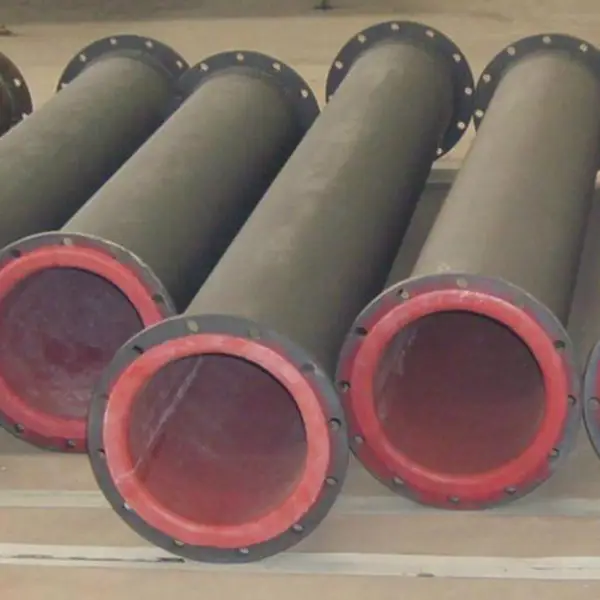

Pipe Type:Rubber-lined Pipe,rubber pipe,rubber lined pipe,lined steel pipe
Outer Diameter:10.3 - 610 mm
Thickness:1.24 - 60 mm
Length:1-12m
Standard:ASTM, bs, DIN, GB, JIS, ANSI A210-1996, ASTM A106-2006, ASTM A179-1990, ASTM A53-2007, BS 1139, BS 6323, DIN 1626, DIN 1629/4, DIN 17175, DIN 2391, GB/T8162, Gb/t8163, JIS G3456-2004, JIS G3459-2004
Grade:10#, 20#, 45#, A106(B,C), A179-C, A53(A,B), 15Mo3, Q195, Q345, ST35.4, St37-2, ST45, ST52, St52.4, ST54, 10#-45#, A53-A369, MO, Q195-Q345, ST35-ST52
Application:structure/fluid/boiler/water and gas etc
Section Shape:Round
Special Pipe:Thick Wall Pipe
Surface Treatment:rubber lined
Technique:Cold Rolled
Package:in bundles or in wooden case
Features
1. Excellent Construction
2. Good wear resistance and long service life
3. High strength and high impact resistance
4. Good corrosion resistance
5. Wide temperature range
6. Quick connection and easy installation
In the mining work, it is widely used in the mine tailings conveying system, coal mine backfilling and related pipe system fields. In particular, the pipeline is very suitable for conveying the temperature between -50°C to +150°C medium, which is easy to wear and corrosion. We can increase the wall thickness at the pipe corner according to the customer's demand, thus extending the service life. Meanwhile, the service life of the rubber-lined steel pipe can reach 15-40 years in general. The pipe can be rotated nearly 90 degrees after 6-8 years of service. Each time of rotation can extend the serving life, Steel pipe can be repeatedly lined with rubber for three to four times, thus it reducing the use of costs in further.
Specifications
Linings are a premium form of corrosion protection for some of the most severe chemical and abrasive environments.
Natural and butyl rubber linings withstand a variety of high-concentration acids and are the optimum choice for high heat and abrasive environments. Additionally, the elasticity of a rubber lining easily accommodates thermal expansion and contraction as well as vibration.
main features are as the follows:
1. The chemical properties are stable, and the characteristics of high heat-resistance and anticorrosion are also excellent;
2. The impact resistance is strong due to the outer protective layer of steel;
3. carbon steel pipe fitting is connected with flange, and easy to installation.
Parts of specification for rubber-lined pipe
|
OD/mm |
Wall Thickness/mm |
Working Pressure*Mpa |
|
450 |
10-50 |
0-25.0 |
|
480 |
10-70 |
0-32.0 |
|
510 |
10-45 |
0-20.0 |
|
530 |
10-50 |
0-22.0 |
|
550 |
10-50 |
0-20.0 |
|
560 |
10-50 |
0-21.0 |
|
610 |
10-55 |
0-20.0 |
|
630 |
10-50 |
0-18.0 |
|
720 |
10-60 |
0-19.0 |
Physical Properties of rubber-lined pipe
|
Item |
Standard |
|
Thickness of lining(MPa) ≥ |
16.5 |
|
The lining and skeleton 180°peel stength(KN/m) ≥ |
8 |
|
Elongation at the lining(%) ≥ |
550 |
|
The lining of the lining is stretched (300%,MPa) ≥ |
4 |
|
The lining layer atonal abrasion loss(cm³/1.61km)≤ |
0.1 |
|
Lining hardness (Sauer Type A) |
60+-5 |
|
The rate of change of the intensity of the thermal ageing of the lining(70°C*72h,%) |
10 |
If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
