Concentric Reducer, Eccentric Reducer
Reducer
Reducer
Reducer
Reducer
Reducer

Reducer

Pipe type:Concentric Reducer, Eccentric Reducer

Size:NPS from 3/4'' to 48'', DN from 20 to 1200,WT: 2-80mm, SCH 40/80/XXSS

Bending Radius: R=1D~10D, R=15D, R=20D

Material & Standard:

Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D, API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S;

Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91

Ends:Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Packing:Packed in Wood Cabins/ Wood Tray

Usage:For conveying gas, water and oil either in the oil or natural gas industries

  • Description
  • Specification
  • Production process
  • Packaging pictures
  • Inquiry
Description

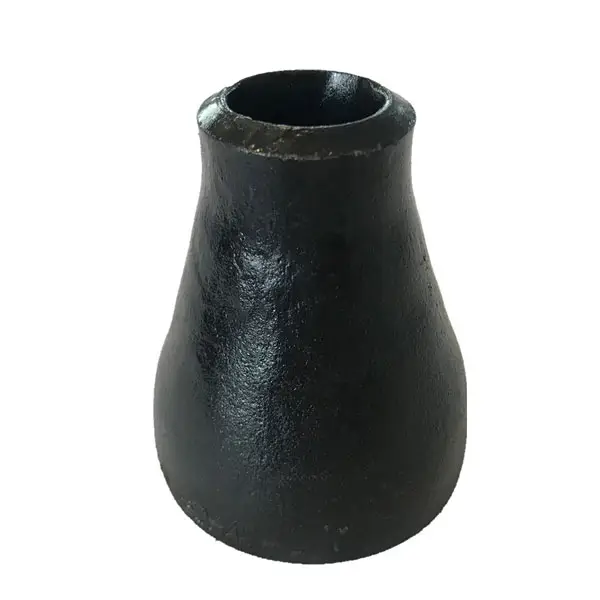

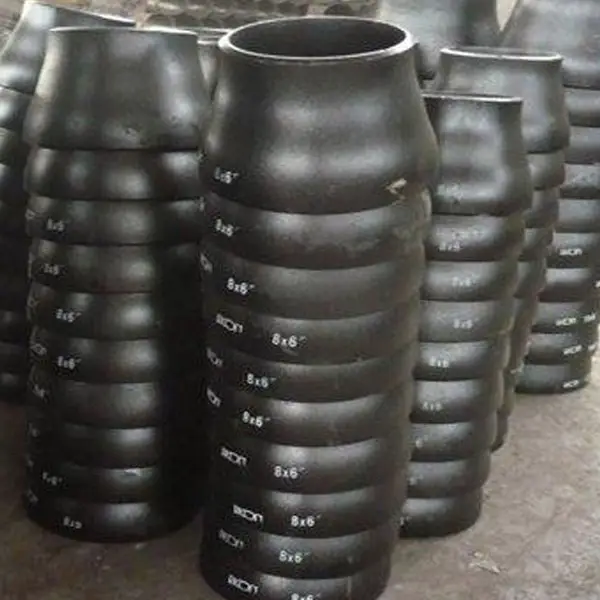

Reducer-01

SIZE:NPS1/2”-120”(DN15-3000)

WALL THICKNESS:SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP

3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Reducer Type:Concentric Reducer, Eccentric

Reducer Material:

Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D, API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91 Specification: NPS from 3/4'' to 48'', DN from 20 to 1200,

WT: 2-80mm, SCH 40/80/XXS Surface: Light Oiling, Black Painting

Reducer Type:Concentric Reducer,

Eccentric Reducer Material: Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D, API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91

Specification: NPS from 3/4'' to 48'', DN from 20 to 1200, WT: 2-80mm, SCH 40/80/XXS Surface: Light Oiling, Black Painting

Specification

Pipe Reducer, Reducer Fittings

Manufacturing Standards

ASME:

ANSI B16.9, ANSI B16.28, MSS-SP-43

DIN:

DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN:

EN10253-1, EN10253-2



ASTM A403 – ASME SA403

Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9

Factory-Made Wrought Fittings Buttwelding

ASME B16.25

Buttwelding Ends

ASME B16.28

Wrought Steel Short Radius Elbows and Buttwelding Returns

MSS SP-43

Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications



Pipe Reducer Material Grades

Stainless Steel Reducer

ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer

ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer

ASTM A420 WPL3, A420 WPL6

Alloy Steel Reducer

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Reducer

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Nickel Alloy Reducer

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

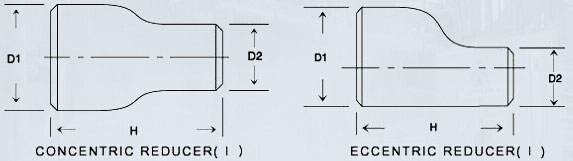

Steel Pipe Reducers available are of concentric and eccentric types. The pipe reducers are suitable components in pipelines that reduce pipe size from large to small bores. The inlet and outlet ends of the steel pipe reducers and alloy pipe reducers align to a common center line.

Reducer-01

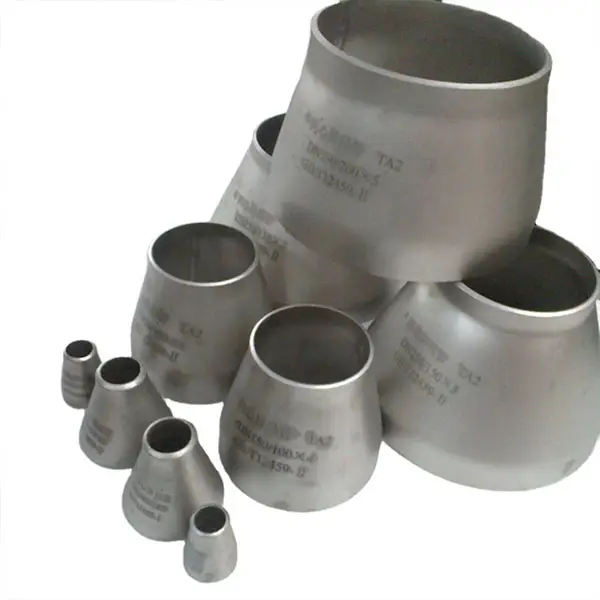

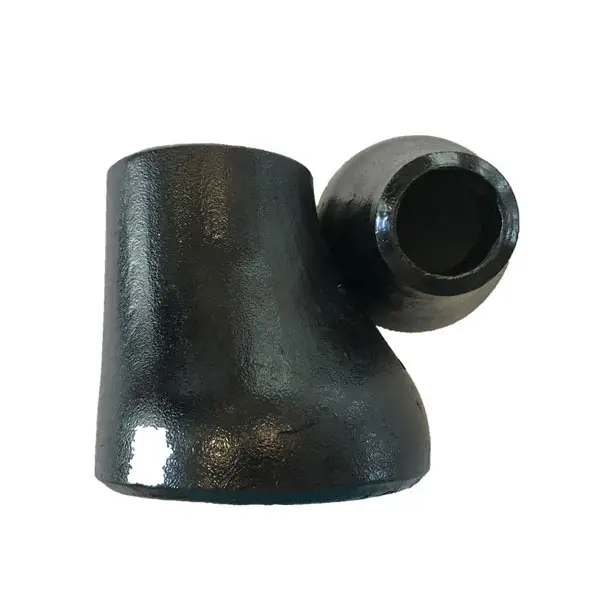

Reducer-02

The reducers can be made of Carbon Steel, Alloy, or Stainless steel and much more. In comparison to the Stainless Steel Reducer, Carbon Steel Reducer possesses high-pressure resistance, higher strength, and wear resistant but this can be easily corroded.

Carbon Steel Reducer material standards and grades:

A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70.

 For Stainless Steel Reducer:

ASTM A403 WP 304, 304L, A403, 316, 316L, 317, 317L, 321, 310 and 904L, etc.

For Alloy Pipe Reducer:

A234 WP1, WP5, WP9, WP11, WP22, WP91 etc.

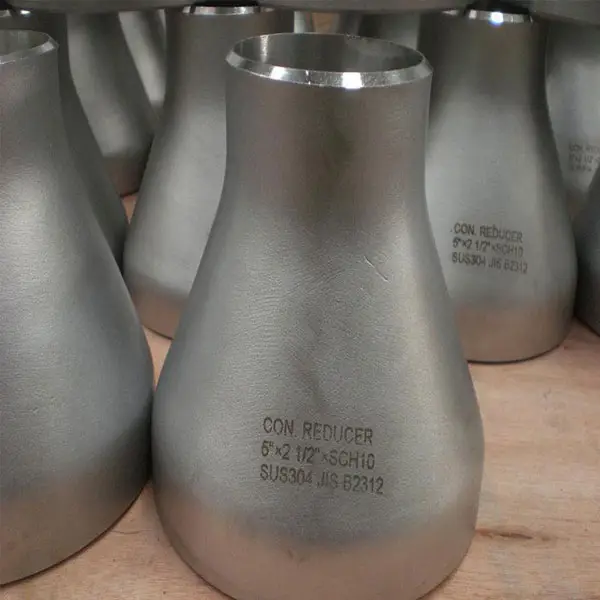

Reducer-04

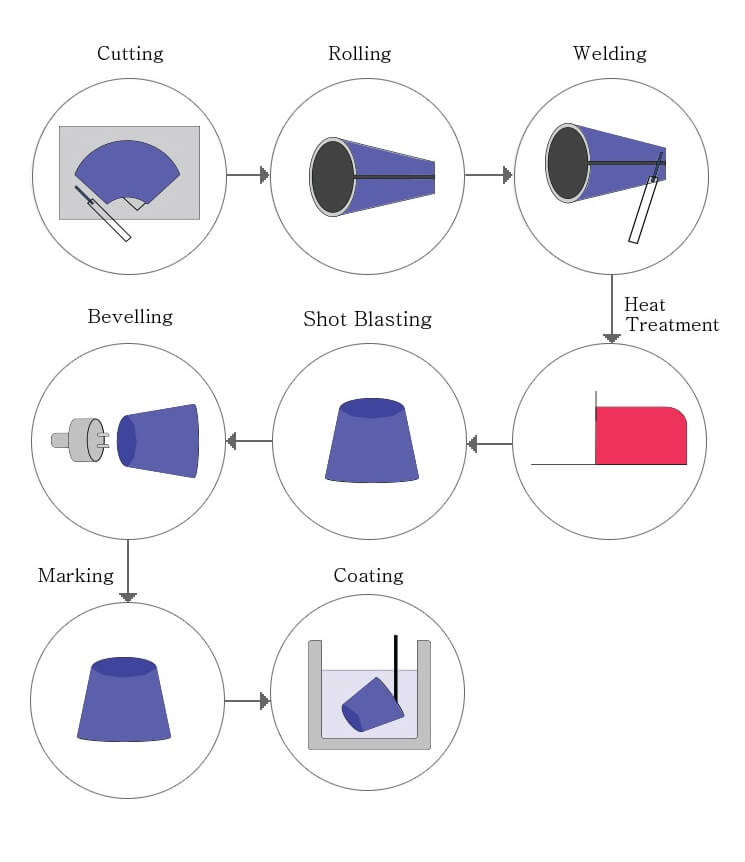

Production process

Packaging pictures
Inquiry

If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
