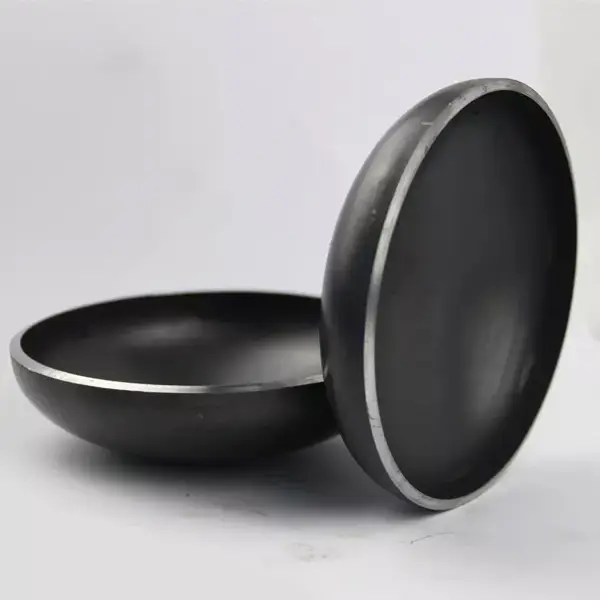

TypeName:cap, enc cap, pipe cap, seamless cap , butt welding cap, carbon steel cap(CS cap), mild steel cap(MS cap), alloy steel cap(AS cap), stainless steel cap(SS cap) Semi Ellipsoidal,
semi ellipsoid cap ,Cap Ellipsoid ,Ellipsoid Cap ,Semi-spherical Head
Size:1/2"-48"/(DN15-DN1200)
Connection: welding
Technic:forged
Varieties:SCH10,SCH20, SGP, STD, SCH40, SCH80, SCH160
Material:
carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8……
alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80……
stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/
WPBA234,,A403-WP316,A403-WP316L,A403-WP317,A403-WP321 etc.
Standard:BS, DIN ,JIS,etc. ANSI B16.9/16.28, ASTM,API 5L, DIN2605/2615/2616, JIS2311/JIS 2312/JIS2313/ ASME B36.10M---1996,MSS SP43/MSS P75/ DIN2617 /GB-12459/GB-T13401 etc…
Surface treatment:Black rust-proof oil, transparent oil, Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing
Application :petroleum, electricity, chemicals, natural gas, construction, shipbuilding and other fields because of its high pressure, high temperature, etc
Pipe Cap Material Grades:

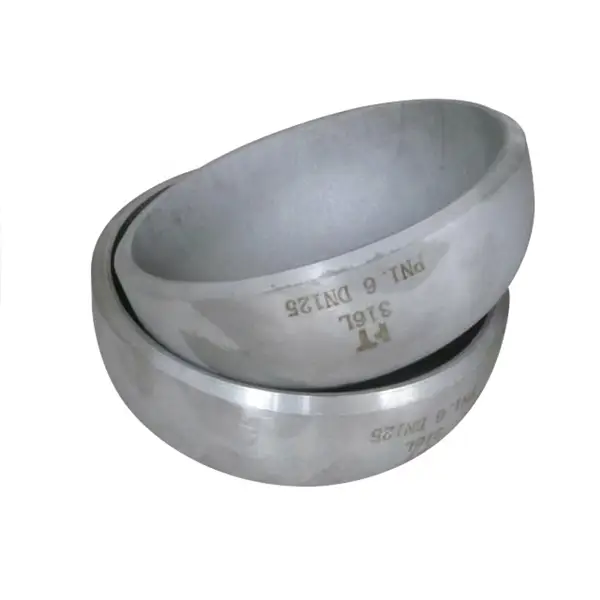

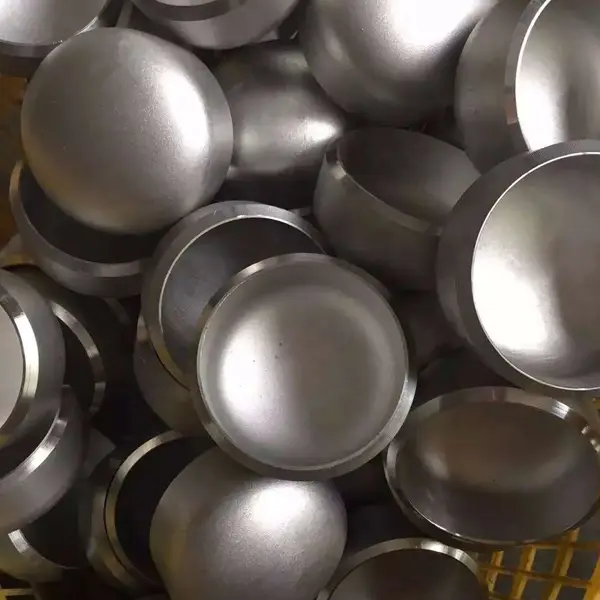

Stainless Steel Pipe Cap:ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

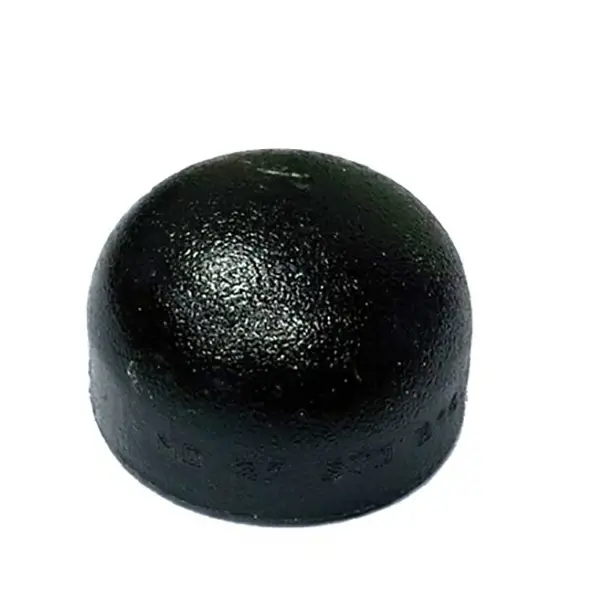

Carbon Steel Pipe Cap:ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Cap:ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe Cap:ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Pipe Cap:ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Pipe Cap:ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
DN |
NPS |
OD |
E |
E1 |
15 |
1/2 |
21.3 |
25 |
25 |
20 |
3/4 |
26.7 |
25 |
25 |
25 |
1 |
33.4 |
38 |
38 |
32 |
1 1/4 |
42.2 |
38 |
38 |
40 |
1 1/2 |
48.3 |
38 |
38 |
50 |
2 |
60.3 |
38 |
44 |
65 |
2 1/2 |
73 |
38 |
51 |
80 |
3 |
88.9 |
51 |
64 |
90 |
3 1/2 |
101.6 |
64 |
76 |
100 |
4 |
114.3 |
64 |
76 |
125 |
5 |
141.3 |
76 |
89 |
150 |
6 |
168.3 |
89 |
102 |
200 |
8 |
219.1 |
102 |
127 |
250 |
10 |
273 |
127 |
152 |
300 |
12 |
323.9 |
152 |
178 |
350 |
14 |
355.6 |
165 |
191 |
400 |
16 |
406.4 |
178 |
203 |
450 |
18 |
457 |
203 |
229 |
500 |
20 |
508 |
229 |
254 |
550 |
22 |
558.8 |
254 |
254 |
600 |
24 |
609.6 |
267 |
305 |
650 |
26 |
660.4 |
267 |
– |
700 |
28 |
711.2 |
267 |
– |
750 |
30 |
762 |
267 |
– |
800 |
32 |
812.8 |
267 |
– |
850 |
34 |
863.6 |
267 |
– |
900 |
36 |
914.4 |
267 |
– |
950 |
38 |
965.2 |
305 |
– |
1000 |
40 |
1016 |
305 |
– |
1050 |
42 |
1066.8 |
305 |
– |
1100 |
44 |
1117.8 |
343 |
– |
1150 |
46 |
1168.4 |
343 |
– |
1200 |
48 |
1219.2 |
343 |
– |
DN |
NPS |
B |
C |
J |
K |
|||||||
3000 |
6000 |
9000 |
3000 |
6000 |
9000 |
|||||||
ave |
min |
ave |
min |
ave |
min |
|||||||
6 |
1/8 |
10.9 |
3.18 |
3.18 |
3.96 |
3.43 |
9.5 |
4.8 |
6.4 |
|||
8 |
1/4 |
14.3 |
3.78 |
3.3 |
4.6 |
4.01 |
9.5 |
4.8 |
6.4 |
|||
10 |
3/8 |
17.7 |
4.01 |
3.5 |
5.03 |
4.37 |
9.5 |
4.8 |
6.4 |
|||
15 |
1/2 |
21.9 |
4.67 |
4.09 |
5.97 |
5.18 |
9.53 |
8.18 |
9.5 |
6.4 |
7.9 |
11.2 |
20 |
3/4 |
27.3 |
4.9 |
4.27 |
6.96 |
6.04 |
9.78 |
8.56 |
12.5 |
6.4 |
7.9 |
12.7 |
25 |
1 |
34 |
5.69 |
4.98 |
7.92 |
6.93 |
11.38 |
9.96 |
12.5 |
9.6 |
11.2 |
14.2 |
32 |
1 1/4 |
42.8 |
6.07 |
5.28 |
7.92 |
6.93 |
12.14 |
10.62 |
12.5 |
9.6 |
11.2 |
14.2 |
40 |
1 1/2 |
48.9 |
6.35 |
5.54 |
8.92 |
7.8 |
12.7 |
11.12 |
12.5 |
11.2 |
12.7 |
15.7 |
50 |
2 |
61.2 |
6.93 |
6.04 |
10.92 |
9.5 |
13.84 |
12.12 |
16 |
12.7 |
15.7 |
19 |
65 |
2 1/2 |
73.9 |
8.76 |
7.62 |
16 |
15.7 |
19 |
|||||
80 |
3 |
89.9 |
9.52 |
8.3 |
16 |
19 |
22.4 |
|||||
100 |
4 |
115.5 |
10.69 |
9.35 |
19 |
22.4 |
28.4 |
DN |
NPS |
P |
D |
G |
L5 |
L2 |
|||
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
||||
6 |
1/8 |
19 |
– |
16 |
22 |
4.8 |
– |
6.4 |
6.7 |
8 |
1/4 |
25 |
27 |
19 |
25 |
4.8 |
6.4 |
8.1 |
10.2 |
10 |
3/8 |
25 |
27 |
22 |
32 |
4.8 |
6.4 |
9.1 |
10.4 |
15 |
1/2 |
32 |
33 |
28 |
38 |
6.4 |
7.9 |
10.9 |
13.6 |
20 |
3/4 |
37 |
38 |
35 |
44 |
6.4 |
7.9 |
12.7 |
13.9 |
25 |
1 |
41 |
43 |
44 |
57 |
9.7 |
11.2 |
14.7 |
17.3 |
32 |
1 1/4 |
44 |
46 |
57 |
64 |
9.7 |
11.2 |
17 |
18 |
40 |
1 1/2 |
44 |
48 |
64 |
76 |
11.2 |
12.7 |
17.8 |
18.4 |
50 |
2 |
48 |
51 |
76 |
92 |
12.7 |
15.7 |
19 |
19.2 |
65 |
2 1/2 |
60 |
64 |
92 |
108 |
15.7 |
19 |
23.6 |
28.9 |
80 |
3 |
65 |
68 |
108 |
127 |
19 |
22.4 |
25.9 |
30.5 |
100 |
4 |
68 |
75 |
140 |
159 |
22.4 |
28.4 |
27.7 |
33 |
If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
