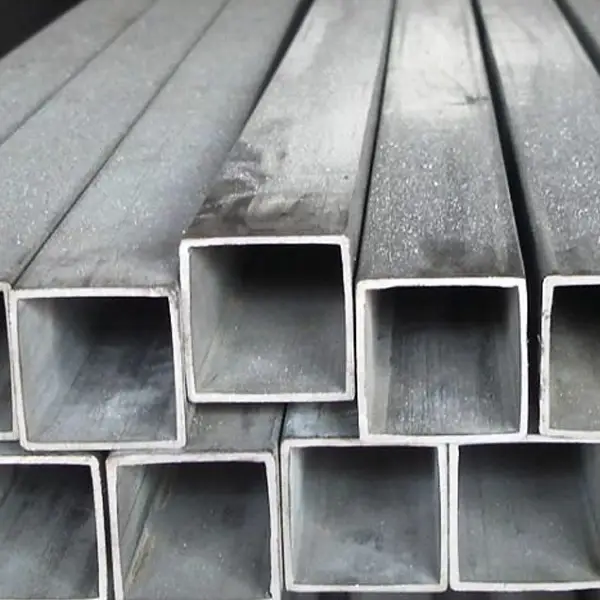

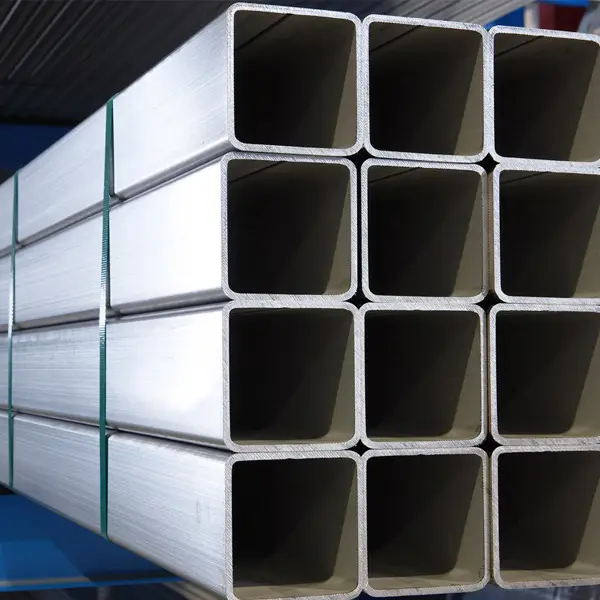

Pipe Type:Stainless Steel Square Tube, Stainless Steel rectangular Tube, Square Hollow Section, Rectangular Hollow Section
Specification:
Square Hollow Section:
Outside Diameter: 8mm x 8mm – 150mm x 150mm
Wall Thickness: 0.5mm – 4mm
Rectangular Hollow Section:
Outside Diameter: 5mm x 20mm – 120mm x 60mm
Wall Thickness: 0.5mm – 4mm
Standard:ASTM A554,ASTM A249,ASTM A312,DIN11850,JIS G3459,JIS G3448,GB/T12770,GB/T12771
Steel Grades: 304/304L,316/316L,301,202,201,409,410,430
Surface: Pickled, Bright, Matt, Polished, Mirror.
Application: The high quality Stainless steel rectangular pipe / tube is widely used for building, architecture, industry, safeguard, decoration, tools, etc.
Packing:Wooden box :packing for Stainless steel rectangular pipe/tube with mirror surface pipe/tube.
Normal size packing:
1.in bundles packing for Stainless steel rectangular pipe/tube without mirror surface.
2.Wooden and pallet packing.Other packing as per customer requirement.
Size of Stainless Steel Rectangular Tube
Size chart of Stainless Steel Square Pipe
Chemical Composition(%) |
|||||||||||
|
Grade |
C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
|
201 |
≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 |
4.0~6.0 |
- | ≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
|
430 |
≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 |
|
- | |||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 |
1.0~2.0 |
||
If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
