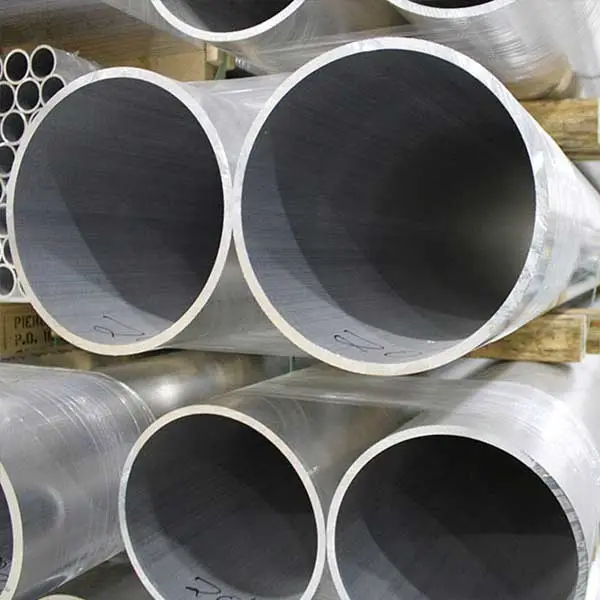

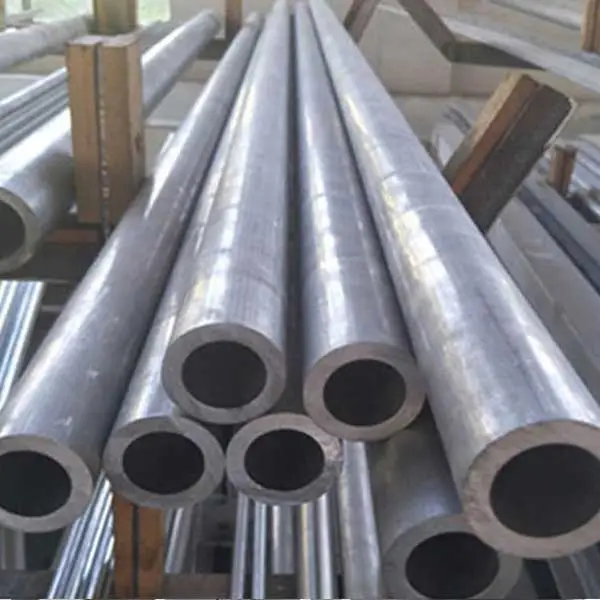

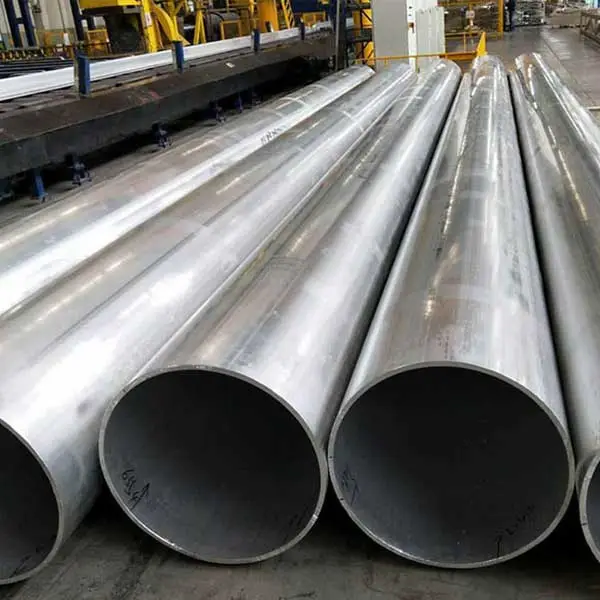

Aluminum steel pipe
Aluminum steel pipe
Aluminum steel pipe

Aluminum steel pipe

Pipe Type:Aluminum alloy round tube, aluminum alloy square tube, aluminum alloy rectangular tube, aluminum alloy hexagonal tube, high precision ultra-fine ultra-thin aluminum tube

Outside Diameter:1/2’’mm - 750mm

Thickness:≥0.3mm

MOQ: 1 Ton

Grade: 1000,2000,3000,5000,6000,7000 series.

Material:1015, 1060, 2011, 2014, 2017, 2024, 3003, 5005, 5052, 5154, 5056, 6106, 6201, 6011, 6351, 6060, 6063, 6061, 6005, 6082, 6463, 6262, 7003, 7075, 7050, 7005, etc

Type:Extruded, Welded, Extruded Seamless, Cold Drawn.
Shape: Round, Square, Rectangle.

Manufacturing Technique:Hot Rolled, Cold Drawn, Cold Rolled, Forged.

Standard:AISI, ASTM, JIS, GB, DIN, etc. Related Standard: ASTM B210 / B210M, ASTM B241 / B241M, ASTM B221/ B221M, ASTM B 211 ASME SB 211 / ASTM B 619 ASME SB 619.etc

Surface:Mill, polished, bright, hair line, brush

Color:Silver, White,Bronze,Gold,Black,Champagne, Or customized
Film Thickness:Anodized:12-25 μm,Powder coating:40-80 μm

  • Description
  • Specification
  • Production process
  • Packaging pictures
  • Inquiry
Description

Pipe Type: Aluminum alloy round tube, aluminum alloy square tube, aluminum alloy rectangular tube, aluminum alloy hexagonal tube, high precision ultra-fine ultra-thin aluminum tube

Outside Diameter: 1/2’’mm - 750mm

Thickness: ≥0.3mm

MOQ: 1 Ton

Grade: 1000,2000,3000,5000,6000,7000 series.

Material: 1015, 1060, 2011, 2014, 2017, 2024, 3003, 5005, 5052, 5154, 5056, 6106, 6201, 6011, 6351, 6060, 6063, 6061, 6005, 6082, 6463, 6262, 7003, 7075, 7050, 7005, etc

Type: Extruded, Welded, Extruded Seamless, Cold Drawn.
Shape: Round, Square, Rectangle.

Manufacturing Technique: Hot Rolled, Cold Drawn, Cold Rolled, Forged.

Standard: AISI, ASTM, JIS, GB, DIN, etc. Related Standard: ASTM B210 / B210M, ASTM B241 / B241M, ASTM B221/ B221M, ASTM B 211 ASME SB 211 / ASTM B 619 ASME SB 619.etc

Surface: Mill, polished, bright, hair line, brush

Color: Silver, White,Bronze,Gold,Black,Champagne, Or customized
Film Thickness:Anodized:12-25 μm,Powder coating:40-80 μm

Aluminium Alloy Seamless Pipes
Aluminum 2014 | 2024 | 6061 | 6082 | 7075 Seamless pipes, Aluminum Alloy Seamless Pipe

Aluminum Welded Pipes
Aluminium & Aluminium Alloy 2014, 2024, 6061, 6082, 7075 Welded Pipes Supplier, Aluminum ERW Pipe

Aluminum Round Pipes & Tubes
Aluminium 2014 | 2024 | 6061 | 6082 | 7075 Round Pipes, Aluminum Alloy Round Tubes, Aluminum and Aluminum-Alloy Round Pipe

Aluminum Square  Pipes & Tubes
Aluminium 2014 | 2024 | 6061 | 6082 | 7075 Square Pipes, Aluminum Alloy Square Tubes, Aluminum and Aluminum-Alloy Square Pipe

Aluminum Rectangular Pipes & Tubes
Aluminium 2014 | 2024 | 6061 | 6082 | 7075 Rectangular Pipes, Aluminum Alloy Rectangular Hollow Tubes, Aluminum Rectangle Pipe

Aluminum Hexagonal Pipes & Tubes
Aluminium Alloy 2014 | 2024 | 6061 | 6082 | 7075 Hexagonal Pipe, Aluminium Hexagonal Tubes, Aluminum Hex Pipes

Specification

Aluminium Pipe Weight Calculation Formula

Weight = l / 1000 * w / 1000 * t * η

  • l = length in mm
  • w = width in mm
  • t = thickness in mm
  • η = Specific material density ( e.g.: steel = 7.85 kg / dm³)

Aluminium Pipe Size Chart

Manufacturer and supplier of Aluminium Hollow Pipe, Aluminium Gi Pipe in China, view 1/2 Aluminium Pipe weight chart & 3/4 Inch Aluminium Pipe dimensions
OM SIZE OUTSIDE
DIA (D)
WALL THICKNESS IN MM (T)
METRIC SIZE
SCH 10S SCH 10 SCH
40 S
STD Weight SCH 40 SCH 80s SCH 80
1/4 " 13.72 1.65 2.24 2.24 2.24 3.02 3.02 -
3/8" 17.15 1.65 2.31 2.31 2.31 3.2 3.2
1/2" 21.34 2.11 - 2.77 2.77 2.77 3.73 3.73 15
3/4" 26.67 2.11 2.87 2.87 2.87 3.91 3.91 20
1" 33.4 2.77 - 3.38 3.38 3.38 4.55 4.55 25
1 1/4" 42.16 2.77 3.56 3.56 3.56 4.85 4.85 32
1 1/2" 48.26 2.77 3.68 3.68 3.68 5.08 5.08 40
2" 60.32 2.77 - 3.91 3.91 3.91 5.54 5.54 50
2 1/2" 73.02 3.05 - 5.16 5.16 5.16 7.01 7.01 65
3" 88.9 3.05 - 5.49 5.49 5.49 7.62 7.62 80
3 1/2" 101.6 3.05 - 5.74 5.74 5.74 8.08 8.08 90
4" 114.3 3.05 - 6.02 6.02 6.02 8.56 8.56 100
5" 141.3 3.4 - 6.55 6.55 6.55 9.52 9.52 125
6" 168.27 3.4 - 7.11 7.11 7.11 10.97 10.97 150
8" 219.07 3.76 - 8.18 8.18 8.18 12.7 12.7 200
10" 273.05 4.19 - 9.27 9.27 9.27 12.7 15.08 250
12" 323.85 4.57 - 9.52 9.52 10.31 12.7 17.47 300
14" 355.6 4.77 6.35 - 9.52 11.12 - 19.05 350
16" 404.6 4.77 6.35 - 9.52 12.7 - 21.44 400
18" 457.2 4.77 6.35 - 9.52 14.27 - 23.82 450

Physical Property of 1050 1060 1070 aluminum tube pipe

Physical Property of 1050 1060 1070 aluminum tube pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
1050 O、H111 All 60 ~ 100 20 25 23
H112 All 60 20 25 23
F All
1060 O All 60 ~ 95 15 25 22
H112 All 60 25 22
1070 O All 60 ~ 95 25 22
H112 All 60 20 25 22


2014 2017 2024 2A12 Aluminum Tube Pipe

Physical Property of 2014 2017 2024 2A12 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
2014 O all ≤205 ≤125 12 10
T4、T4510、T4511 all 345 240 12 10
all 345 240 12 10
T42 all 345 200 12 10
T62 ≤18 415 365 7 6
>18 415 365 - 6
T6、T6510、T6511 ≤12.50 415 365 7 6
12.50~18.00 440 400 - 6
>18.00 470 400 - 6
2017 O all ≤245 ≤125 16 16
T4 all 345 215 12 12
T1 all 335 195 12 -
2024 O
T3、T3510、T3511 ≤6.30 395 290 10 -
>6.30~18.00 415 305 10 9
>18.00~35.00 450 315 - 9
>35.00 470 330 - 7
2024 T4 ≤18.00 395 260 12 10
>18.00 395 260 - 9
T42 ≤18.00 395 260 12 10
>18.00~35.00 395 260 - 9
>35.00 395 260 - 7
T81、T8510、
T8511
>1.20~6.30 440 260 4 -
>6.30~35.00 455 260 5 4
>35.00 455 260 - 4
2A12 O all ≤245 - - 10
T42 all 390 255 - 10
T4 all 390 255 - 10


Chemical Composition of 2014 2017 2024 2A12 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
2014 0.50-1.2 0.7 3.9-5.0 0.40-1.2 0.20-0.8 0.10 - 0.25 - - 0.15 0.15 Remainder
2017 0.20-0.8 0.7 3.5-4.5 0.40-1.0 0.40-1.0 0.10 - 0.25 - - - 0.15 Remainder
2024 0.50 0.50 3.8-4.9 0.30-0.9 1.2-1.8 0.10 - 0.25 - - 0.15 0.15 Remainder
2A12 0.5-1.2 0.70 3.9-5.0 0.4-1.2 0.2-0.8 0.10 - 0.25 - - 0.15 0.15 Remainder

2219 2A11 2A14 2A50 Aluminum Tube Pipe

Chemical Composition of 2219 2A11 2A14 2A50 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
2219 0.20 0.30 5.8-6.8 0.20-0.40 0.02 - - 0.10 - - 0.02-0.10 0.15 Remainder
2A11 0.7 0.70 3.8-4.8 0.40-0.8 0.4-0.8 - 0.10 0.30 - - 0.15 0.15 Remainder
2A14 0.6-1.2 0.7 3.9-4.8 0.4-1.0 0.4-0.8 - 0.10 0.30 - - 0.10 0.15 Remainder
2A50 0.7-1.2 0.7 1.8-2.6 0.4-0.8 0.4-0.8 - 0.10 0.30 - - 0.15 0.15 Remainder


Physical Property of 2219 2A11 2A14 2A50 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
2219 O all ≤220 ≤125 12 10
T31、T3510、T3511 ≤12.50 290 180 14 12
>12.50~80.00 310 185 - 12
T62 ≤25.00 370 250 6 5
>25.00 370 250 - 5
T81、T8510、T8511 ≤80.00 440 290 6 5
2A11 O all ≤245 - - 10
T1 all 350 195 - 10
2A14 T6 all 430 350 6 -
2A50 T6 all 380 250 - 10


3003 3A21Aluminum Tube Pipe

Chemical Composition of 3003 3A21 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Min.A1
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - - - 0.15 Remainder
3A21 0.6 0.7 0.20 1.0-1.6 0.05 - - 0.15 - - 0.10-0.20 0.15 Remainder


Physical Property of 3003 3A21 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
3003 O All 95 ~ 130 35 25 22
H112 ≤1.60 95 35
>1.60 95 35 25 22
F All
3A21 H112 All ≤165

5052 5083 5086 5154 5454 5456 aluminum tube pipe

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.15-0.35 - 0.10 - - - 0.15 Remainder
5083 0.40 0.40 0.10 0.40-0.10 4.0-4.9 0.05-0.25 - 0.25 - - 0.15 0.15 Remainder
5086 0.40 0.50 0.10 0.20-0.7 3.5-4.5 0.05-0.25 - 0.25 - - 0.15 0.15 Remainder
5154 0.50 0.50 0.10 0.50 3.1-3.9 0.25 - 0.20 - - 0.20 0.15 Remainder
5454 0.25 0.40 0.10 0.50-1.0 2.4-3.0 0.05-0.20 - 0.25 - - 0.20 0.15 Remainder
5456 0.25 0.40 0.10 0.50-1.0 4.7-5.5 0.05-0.20 - 0.25 - - 0.20 0.15 Remainder


Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
5052
O All 170 ~240 70 15 17
H112 All 170 70 13 15
F All - - - -
5083 O All 270~350 110 14 12
H111 All 275 165 12 10
H112 All 270 110 12 10
F All - - - -
5154 O All 205~285 75 - -
H112 All 205 75 - -
5454 O All 215~285 85 14 12
H111 All 230 130 12 10
H112 All 215 85 12 10
5456 O All 285~365 130 14 12
H111 All 290 180 12 10
H112 All 285 130 12 10
5086 O All 240~315 95 14 12
H111 All 250 145 12 10
H112 All 240 95 12 10
F All - - - -


6005 6105 6041 6042 aluminum tube pipe

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
6005 0.6-0.9 0.35 0.10 0.10 0.40-0.60 0.10 - 0.10 - - 0.10 0.15 Remainder
6105 0.6-1.0 0.35 0.10 0.10 0.45-0.8 0.1 - 0.1 - - 0.1 0.15 Remainder
6041 0.5-0.9 0.15-0.70 0.15-0.60 0.05-0.20 0.8-1.2 0.05-0.15 - 0.25 - - 0.15 0.15 Remainder
6042 0.5-1.2 0.70 0.2-0.6 0.40 0.7-1.2 0.04-0.35 - 0.25 - - 0.15 0.15 Remainder


Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
6005
T1 ≤12.50 170 105 16 14
T5 ≤3.20 260 240 8 -
3.20~25.00 260 240 10 9
6105 T1 ≤12.50 170 105 16 14
T5 ≤12.50 260 240 8 7
6041 T5、T6511 10.00~50.00 310 275 10 9
6042 T5、T6511 10.00~12.50 260 240 10 -
12.50~50.00 290 240 - 9

6061 6351 6082 Aluminum Tube Pipe

Chemical Composition of 6061 6351 6082 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
6061 0.40-0.80 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 - - 0.1 0.15 Remainder
6351 0.7-1.3 0.50 0.10 0.4-0.8 0.4-0.8 - - 0.20 - - 0.20 0.15 Remainder
6082 0.7-1.1 0.5 0.1 0.1-0.45 0.6-1.0 0.25 - 0.20 - - 0.15 0.15 Remainder


Physical Property  of 6061 6351 6082 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
6061 O all 170 105 16 14
T1 ≤16.00 260 240 8 -
T42 all 180 85 16 14
T62 ≤6.30 260 240 8 -
>6.30 260 240 10 9
T4、T4510、T4511 all 180 110 16 14
T51 ≤16.00 240 205 8 7
T6、T6510、T6511 ≤6.30 260 240 8 -
>6.30 260 240 10 9
F all - - -- -
6351 O、H111 ≤25.00 ≤160 ≤110 12 14
T4 ≤19.00 220 130 16 14
T6 ≤3.20 290 255 8 -
>3.20--25.00 290 255 10 9
6082 O、H111 ≤25.00 ≤160 ≤110 12 14
T4 ≤25.00 205 110 12 14
T6 ≤5.00 290 250 6 8
>5.00--25.00 310 260 8 10

6162 6262 6064 6063 6066 6A02 aluminum tube pipe

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
6162 0.4-0.8 0.5 0.2 0.1 0.7-1.1 - - 0.25 - - 0.1 0.15 Remainder
6262 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-1.4 - 0.25 - - 0.15 0.15 Remainder
6064 0.4-0.8 0.70 0.15-0.40 0.15 0.80-1.2 0.25 - 0.25 - - 0.15 0.15 Remainder
6063 0.2-0.6 0.35 0.10 0.10 0.45-0.9 0.10 - 0.25 - - 0.10 0.15 Remainder
6066 0.9-1.8 0.50 0.7-1.2 0.6-1.1 0.8-1.4 0.4 - 0.25 - - 0.2 0.15 Remainder
6A02 0.5-1.2 0.5 0.2-0.6 0.15 0.45-0.9 - - 0.20 - - 0.15 0.15 Remainder


Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
6162 T5、T5510、T5511 ≤25.00 255 235 7 6
T6、T6510、T6511 ≤6.30 260 240 8
>6.3-12.50 260 240 10 9
6262 T6、T6511 all 260 240 10 9
6063 O all ≤130 - 18 16
T1 ≤12.50 115 60 12 10
>12.50~25.00 110 55 - 10
T42 ≤12.50 130 70 14 12
>12.50~25.00 125 60 - 12
T4 ≤12.50 130 70 14 12
>12.50~25.00 125 60 - 12
T5 ≤25.00 175 130 6 8
T52 ≤25.00 150-205 110-170 8 7
T6 all 205 170 10 9
T66 ≤25.00 245 200 8 10
F all - - - -
6064 T6、T6511 10.0-50.0 260 240 10 9
6066 O all ≤200 ≤125 16 14
T4、T4510、T4511 all 275 170 14 12
T42 all 275 165 14 12
T62 all 345 290 8 7
T6、T6510、T6511 all 345 310 8 7
6A02 O all ≤145 - - 17
T4 all 205 - - 14
T62 all 295 - - 8
T6 all 295 - - 8

7050 7075 7178 aluminum tube pipe

Chemical Composition of 7050 7075 7178 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga Zr Ti Other Min.Al
7050 0.12 0.15 2.0-2.6 0.10 1.9-2.6 0.01 - 5.7-6.7 - 0.08-0.15 0.06 0.15 Remainder
7075 0.40 0.50 1.2-2.0 0.30 2.1-2.9 0.18-0.28 - 5.1-6.1 - - 0.20 0.15 Remainder
7178 0.40 0.50 1.6-2.4 0.3 2.4-3.1 0.18-0.28 - 6.3-7.3 - - 0.20 0.15 Remainder


Physical Property of 7050 7075 7178 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
7050 T76510 all 545 475 7 -
T73511 all 485 415 8 7
T74511 all 505 435 7 -
7075 O、H111 ≤10.00 ≤275 ≤165 10 10
T62 ≤6.30 540 485 7 -
>6.30-12.50 560 505 7 6
>12.50-70.00 560 495 7 6
T6、T6510、T6511 ≤6.30 540 485 7 -
>6.30-12.50 560 505 7 -
>12.50-70.00 560 495 - 6
T73、T73510、T73511 1.60-6.30 470 400 5 7
>6.30-35.00 485 420 6 8
>35.00-70.00 475 405 - 8
7178 O all ≤275 ≤165 10 9
T6、T6510、T6511 ≤1.60 565 525 - -
>1.6-6.30 580 525 5 -
>6.30-35.00 600 540 5 4
>35.00-60.00 580 515 - 4
>60.00-80.00 565 490 - 4
T62 ≤1.60 545 505 - -
>1.6-6.30 565 510 5 -
>6.30-35.00 595 530 5 4
>35.00-60.00 580 515 - 4
>60.00-80.00 565 490 - 4



Comparison of Alloy Designations for Aluminum Products
Alloy Series Chinese Standard American Standard European Standard
5xxx Series 5052 5052 EN AW-5052
5083 5083 EN AW-5083
5754 - EN AW 5754
6xxx Series 6005 6005 -
6060 6060 EN AW-6060
6061 6061 EN AW-6061
6063 6063 EN AW-6063
6082 6082 EN AW-6082
6463 6463 -
Production process

Packaging pictures

Inquiry

If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!

Send Email
Specification

Aluminium Pipe Weight Calculation Formula

Weight = l / 1000 * w / 1000 * t * η

  • l = length in mm
  • w = width in mm
  • t = thickness in mm
  • η = Specific material density ( e.g.: steel = 7.85 kg / dm³)

Aluminium Pipe Size Chart

Manufacturer and supplier of Aluminium Hollow Pipe, Aluminium Gi Pipe in China, view 1/2 Aluminium Pipe weight chart & 3/4 Inch Aluminium Pipe dimensions
OM SIZE OUTSIDE
DIA (D)
WALL THICKNESS IN MM (T)
METRIC SIZE
SCH 10S SCH 10 SCH
40 S
STD Weight SCH 40 SCH 80s SCH 80
1/4 " 13.72 1.65 2.24 2.24 2.24 3.02 3.02 -
3/8" 17.15 1.65 2.31 2.31 2.31 3.2 3.2
1/2" 21.34 2.11 - 2.77 2.77 2.77 3.73 3.73 15
3/4" 26.67 2.11 2.87 2.87 2.87 3.91 3.91 20
1" 33.4 2.77 - 3.38 3.38 3.38 4.55 4.55 25
1 1/4" 42.16 2.77 3.56 3.56 3.56 4.85 4.85 32
1 1/2" 48.26 2.77 3.68 3.68 3.68 5.08 5.08 40
2" 60.32 2.77 - 3.91 3.91 3.91 5.54 5.54 50
2 1/2" 73.02 3.05 - 5.16 5.16 5.16 7.01 7.01 65
3" 88.9 3.05 - 5.49 5.49 5.49 7.62 7.62 80
3 1/2" 101.6 3.05 - 5.74 5.74 5.74 8.08 8.08 90
4" 114.3 3.05 - 6.02 6.02 6.02 8.56 8.56 100
5" 141.3 3.4 - 6.55 6.55 6.55 9.52 9.52 125
6" 168.27 3.4 - 7.11 7.11 7.11 10.97 10.97 150
8" 219.07 3.76 - 8.18 8.18 8.18 12.7 12.7 200
10" 273.05 4.19 - 9.27 9.27 9.27 12.7 15.08 250
12" 323.85 4.57 - 9.52 9.52 10.31 12.7 17.47 300
14" 355.6 4.77 6.35 - 9.52 11.12 - 19.05 350
16" 404.6 4.77 6.35 - 9.52 12.7 - 21.44 400
18" 457.2 4.77 6.35 - 9.52 14.27 - 23.82 450

Physical Property of 1050 1060 1070 aluminum tube pipe

Physical Property of 1050 1060 1070 aluminum tube pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
1050 O、H111 All 60 ~ 100 20 25 23
H112 All 60 20 25 23
F All
1060 O All 60 ~ 95 15 25 22
H112 All 60 25 22
1070 O All 60 ~ 95 25 22
H112 All 60 20 25 22


2014 2017 2024 2A12 Aluminum Tube Pipe

Physical Property of 2014 2017 2024 2A12 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
2014 O all ≤205 ≤125 12 10
T4、T4510、T4511 all 345 240 12 10
all 345 240 12 10
T42 all 345 200 12 10
T62 ≤18 415 365 7 6
>18 415 365 - 6
T6、T6510、T6511 ≤12.50 415 365 7 6
12.50~18.00 440 400 - 6
>18.00 470 400 - 6
2017 O all ≤245 ≤125 16 16
T4 all 345 215 12 12
T1 all 335 195 12 -
2024 O
T3、T3510、T3511 ≤6.30 395 290 10 -
>6.30~18.00 415 305 10 9
>18.00~35.00 450 315 - 9
>35.00 470 330 - 7
2024 T4 ≤18.00 395 260 12 10
>18.00 395 260 - 9
T42 ≤18.00 395 260 12 10
>18.00~35.00 395 260 - 9
>35.00 395 260 - 7
T81、T8510、
T8511
>1.20~6.30 440 260 4 -
>6.30~35.00 455 260 5 4
>35.00 455 260 - 4
2A12 O all ≤245 - - 10
T42 all 390 255 - 10
T4 all 390 255 - 10


Chemical Composition of 2014 2017 2024 2A12 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
2014 0.50-1.2 0.7 3.9-5.0 0.40-1.2 0.20-0.8 0.10 - 0.25 - - 0.15 0.15 Remainder
2017 0.20-0.8 0.7 3.5-4.5 0.40-1.0 0.40-1.0 0.10 - 0.25 - - - 0.15 Remainder
2024 0.50 0.50 3.8-4.9 0.30-0.9 1.2-1.8 0.10 - 0.25 - - 0.15 0.15 Remainder
2A12 0.5-1.2 0.70 3.9-5.0 0.4-1.2 0.2-0.8 0.10 - 0.25 - - 0.15 0.15 Remainder

2219 2A11 2A14 2A50 Aluminum Tube Pipe

Chemical Composition of 2219 2A11 2A14 2A50 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
2219 0.20 0.30 5.8-6.8 0.20-0.40 0.02 - - 0.10 - - 0.02-0.10 0.15 Remainder
2A11 0.7 0.70 3.8-4.8 0.40-0.8 0.4-0.8 - 0.10 0.30 - - 0.15 0.15 Remainder
2A14 0.6-1.2 0.7 3.9-4.8 0.4-1.0 0.4-0.8 - 0.10 0.30 - - 0.10 0.15 Remainder
2A50 0.7-1.2 0.7 1.8-2.6 0.4-0.8 0.4-0.8 - 0.10 0.30 - - 0.15 0.15 Remainder


Physical Property of 2219 2A11 2A14 2A50 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
2219 O all ≤220 ≤125 12 10
T31、T3510、T3511 ≤12.50 290 180 14 12
>12.50~80.00 310 185 - 12
T62 ≤25.00 370 250 6 5
>25.00 370 250 - 5
T81、T8510、T8511 ≤80.00 440 290 6 5
2A11 O all ≤245 - - 10
T1 all 350 195 - 10
2A14 T6 all 430 350 6 -
2A50 T6 all 380 250 - 10


3003 3A21Aluminum Tube Pipe

Chemical Composition of 3003 3A21 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Min.A1
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - - - 0.15 Remainder
3A21 0.6 0.7 0.20 1.0-1.6 0.05 - - 0.15 - - 0.10-0.20 0.15 Remainder


Physical Property of 3003 3A21 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
3003 O All 95 ~ 130 35 25 22
H112 ≤1.60 95 35
>1.60 95 35 25 22
F All
3A21 H112 All ≤165

5052 5083 5086 5154 5454 5456 aluminum tube pipe

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.15-0.35 - 0.10 - - - 0.15 Remainder
5083 0.40 0.40 0.10 0.40-0.10 4.0-4.9 0.05-0.25 - 0.25 - - 0.15 0.15 Remainder
5086 0.40 0.50 0.10 0.20-0.7 3.5-4.5 0.05-0.25 - 0.25 - - 0.15 0.15 Remainder
5154 0.50 0.50 0.10 0.50 3.1-3.9 0.25 - 0.20 - - 0.20 0.15 Remainder
5454 0.25 0.40 0.10 0.50-1.0 2.4-3.0 0.05-0.20 - 0.25 - - 0.20 0.15 Remainder
5456 0.25 0.40 0.10 0.50-1.0 4.7-5.5 0.05-0.20 - 0.25 - - 0.20 0.15 Remainder


Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
5052
O All 170 ~240 70 15 17
H112 All 170 70 13 15
F All - - - -
5083 O All 270~350 110 14 12
H111 All 275 165 12 10
H112 All 270 110 12 10
F All - - - -
5154 O All 205~285 75 - -
H112 All 205 75 - -
5454 O All 215~285 85 14 12
H111 All 230 130 12 10
H112 All 215 85 12 10
5456 O All 285~365 130 14 12
H111 All 290 180 12 10
H112 All 285 130 12 10
5086 O All 240~315 95 14 12
H111 All 250 145 12 10
H112 All 240 95 12 10
F All - - - -


6005 6105 6041 6042 aluminum tube pipe

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
6005 0.6-0.9 0.35 0.10 0.10 0.40-0.60 0.10 - 0.10 - - 0.10 0.15 Remainder
6105 0.6-1.0 0.35 0.10 0.10 0.45-0.8 0.1 - 0.1 - - 0.1 0.15 Remainder
6041 0.5-0.9 0.15-0.70 0.15-0.60 0.05-0.20 0.8-1.2 0.05-0.15 - 0.25 - - 0.15 0.15 Remainder
6042 0.5-1.2 0.70 0.2-0.6 0.40 0.7-1.2 0.04-0.35 - 0.25 - - 0.15 0.15 Remainder


Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
6005
T1 ≤12.50 170 105 16 14
T5 ≤3.20 260 240 8 -
3.20~25.00 260 240 10 9
6105 T1 ≤12.50 170 105 16 14
T5 ≤12.50 260 240 8 7
6041 T5、T6511 10.00~50.00 310 275 10 9
6042 T5、T6511 10.00~12.50 260 240 10 -
12.50~50.00 290 240 - 9

6061 6351 6082 Aluminum Tube Pipe

Chemical Composition of 6061 6351 6082 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
6061 0.40-0.80 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 - - 0.1 0.15 Remainder
6351 0.7-1.3 0.50 0.10 0.4-0.8 0.4-0.8 - - 0.20 - - 0.20 0.15 Remainder
6082 0.7-1.1 0.5 0.1 0.1-0.45 0.6-1.0 0.25 - 0.20 - - 0.15 0.15 Remainder


Physical Property  of 6061 6351 6082 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
6061 O all 170 105 16 14
T1 ≤16.00 260 240 8 -
T42 all 180 85 16 14
T62 ≤6.30 260 240 8 -
>6.30 260 240 10 9
T4、T4510、T4511 all 180 110 16 14
T51 ≤16.00 240 205 8 7
T6、T6510、T6511 ≤6.30 260 240 8 -
>6.30 260 240 10 9
F all - - -- -
6351 O、H111 ≤25.00 ≤160 ≤110 12 14
T4 ≤19.00 220 130 16 14
T6 ≤3.20 290 255 8 -
>3.20--25.00 290 255 10 9
6082 O、H111 ≤25.00 ≤160 ≤110 12 14
T4 ≤25.00 205 110 12 14
T6 ≤5.00 290 250 6 8
>5.00--25.00 310 260 8 10

6162 6262 6064 6063 6066 6A02 aluminum tube pipe

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
6162 0.4-0.8 0.5 0.2 0.1 0.7-1.1 - - 0.25 - - 0.1 0.15 Remainder
6262 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-1.4 - 0.25 - - 0.15 0.15 Remainder
6064 0.4-0.8 0.70 0.15-0.40 0.15 0.80-1.2 0.25 - 0.25 - - 0.15 0.15 Remainder
6063 0.2-0.6 0.35 0.10 0.10 0.45-0.9 0.10 - 0.25 - - 0.10 0.15 Remainder
6066 0.9-1.8 0.50 0.7-1.2 0.6-1.1 0.8-1.4 0.4 - 0.25 - - 0.2 0.15 Remainder
6A02 0.5-1.2 0.5 0.2-0.6 0.15 0.45-0.9 - - 0.20 - - 0.15 0.15 Remainder


Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
6162 T5、T5510、T5511 ≤25.00 255 235 7 6
T6、T6510、T6511 ≤6.30 260 240 8
>6.3-12.50 260 240 10 9
6262 T6、T6511 all 260 240 10 9
6063 O all ≤130 - 18 16
T1 ≤12.50 115 60 12 10
>12.50~25.00 110 55 - 10
T42 ≤12.50 130 70 14 12
>12.50~25.00 125 60 - 12
T4 ≤12.50 130 70 14 12
>12.50~25.00 125 60 - 12
T5 ≤25.00 175 130 6 8
T52 ≤25.00 150-205 110-170 8 7
T6 all 205 170 10 9
T66 ≤25.00 245 200 8 10
F all - - - -
6064 T6、T6511 10.0-50.0 260 240 10 9
6066 O all ≤200 ≤125 16 14
T4、T4510、T4511 all 275 170 14 12
T42 all 275 165 14 12
T62 all 345 290 8 7
T6、T6510、T6511 all 345 310 8 7
6A02 O all ≤145 - - 17
T4 all 205 - - 14
T62 all 295 - - 8
T6 all 295 - - 8

7050 7075 7178 aluminum tube pipe

Chemical Composition of 7050 7075 7178 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga Zr Ti Other Min.Al
7050 0.12 0.15 2.0-2.6 0.10 1.9-2.6 0.01 - 5.7-6.7 - 0.08-0.15 0.06 0.15 Remainder
7075 0.40 0.50 1.2-2.0 0.30 2.1-2.9 0.18-0.28 - 5.1-6.1 - - 0.20 0.15 Remainder
7178 0.40 0.50 1.6-2.4 0.3 2.4-3.1 0.18-0.28 - 6.3-7.3 - - 0.20 0.15 Remainder


Physical Property of 7050 7075 7178 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
7050 T76510 all 545 475 7 -
T73511 all 485 415 8 7
T74511 all 505 435 7 -
7075 O、H111 ≤10.00 ≤275 ≤165 10 10
T62 ≤6.30 540 485 7 -
>6.30-12.50 560 505 7 6
>12.50-70.00 560 495 7 6
T6、T6510、T6511 ≤6.30 540 485 7 -
>6.30-12.50 560 505 7 -
>12.50-70.00 560 495 - 6
T73、T73510、T73511 1.60-6.30 470 400 5 7
>6.30-35.00 485 420 6 8
>35.00-70.00 475 405 - 8
7178 O all ≤275 ≤165 10 9
T6、T6510、T6511 ≤1.60 565 525 - -
>1.6-6.30 580 525 5 -
>6.30-35.00 600 540 5 4
>35.00-60.00 580 515 - 4
>60.00-80.00 565 490 - 4
T62 ≤1.60 545 505 - -
>1.6-6.30 565 510 5 -
>6.30-35.00 595 530 5 4
>35.00-60.00 580 515 - 4
>60.00-80.00 565 490 - 4



Comparison of Alloy Designations for Aluminum Products
Alloy Series Chinese Standard American Standard European Standard
5xxx Series 5052 5052 EN AW-5052
5083 5083 EN AW-5083
5754 - EN AW 5754
6xxx Series 6005 6005 -
6060 6060 EN AW-6060
6061 6061 EN AW-6061
6063 6063 EN AW-6063
6082 6082 EN AW-6082
6463 6463 -
Production process

Packaging pictures

Inquiry

LEAVE US A MESSAGE

Welcome to fill the form below to contact us

  • Name*

  • Company Name*

  • Phone/Whatsapp*

  • Email*

  • Message*

If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!

Email Us
We use cookies and other tracking technologies to improve your browsing experience on our website, to show you personalized content and targeted ads, to analyze our website traffic, and to understand where our visitors are coming from,This behavior is in compliance with the user consent policy.
