Oil and Water Drilling Well Screen Tube, Filter Pipe

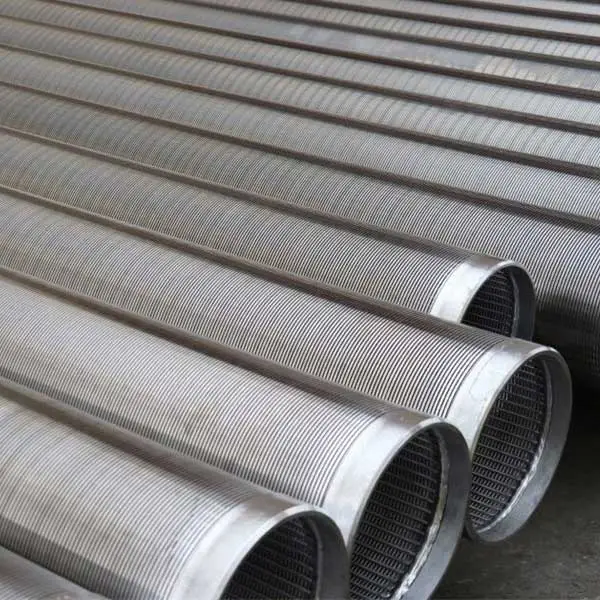

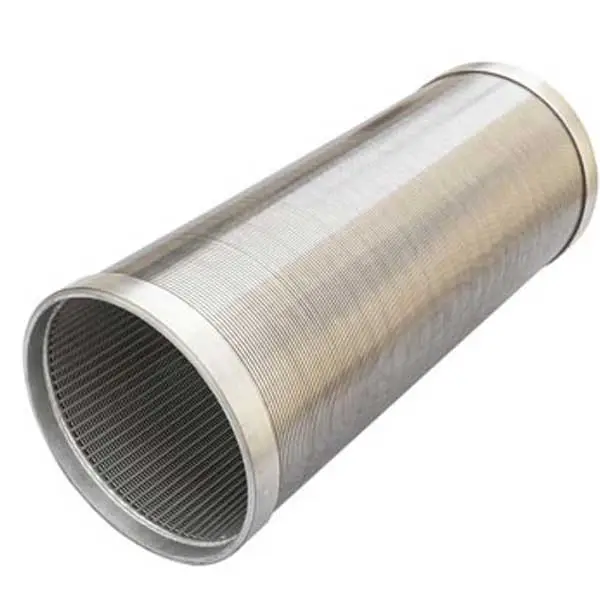

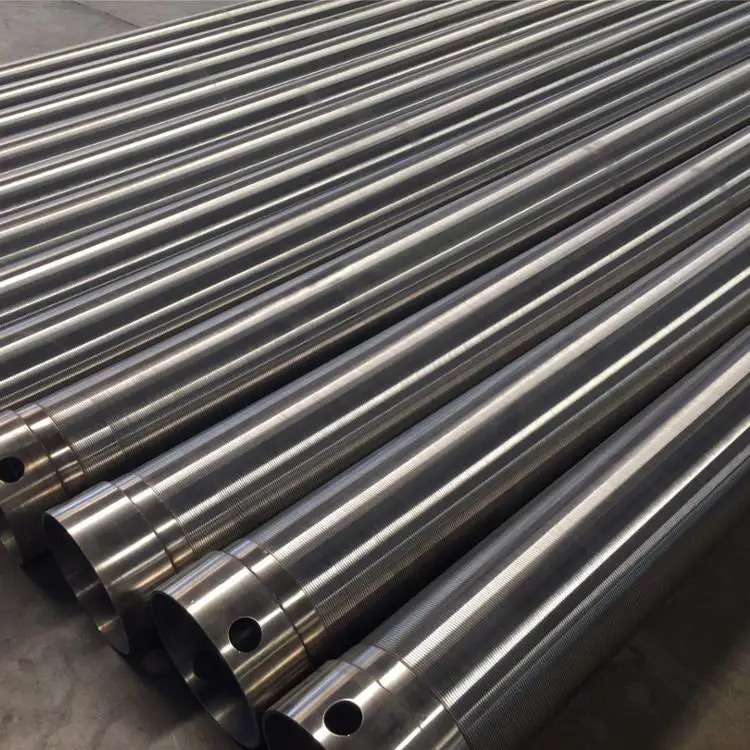

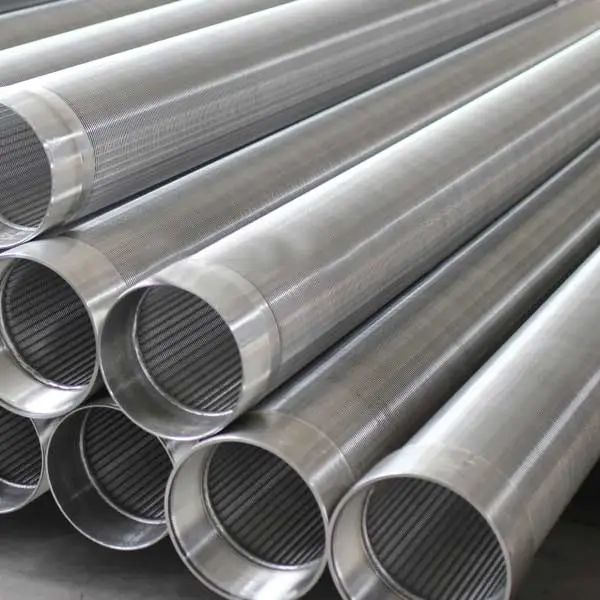

Stainless Steel Screen Pipe
Stainless Steel Screen Pipe
Stainless Steel Screen Pipe
Stainless Steel Screen Pipe
Stainless Steel Screen Pipe

Stainless Steel Screen Pipe

Product type:Oil and Water Drilling Well Screen Tube, Filter Pipe

Specifications of Screen pipe:

Size:OD:114-219mm*5-22mm

The external diameter is ranged from 89mm to 1200mm.

  1. Slot size(mm):  0.10, 0.15, 0.2, 0.25, 0.30-3, we can also custom the products based on your requirements. The opening area can reach 60% at most.
  2. Open area: Up to 60% (high flow, low-pressure drop)
  3. Material: 304,304L, 316, 316L and other stainless steel wire; low carbon steel,low carbon galvanized steel (LCG) steel treated with anticorrosion coating,, plastic spray, stainless steel;
  4. Unit Length :up to 6 meters
  5. Base pipe:N/L 80 or J55 etc.
  6. End connection: Welded ring, Threads coupling(STC, LTC, BTC), Flange
  • Description
  • Specification
  • Production process
  • Packaging pictures
  • Inquiry
Description

Johnson water well screen consists of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded. So this quality screen has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water.

The consecutive slot have more open area , and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure. So it can filter sand better. Meanwile, the slot can change according to the real condition of the earth.

It is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.


Product type:Oil and Water Drilling Well Screen Tube, Filter Pipe

Specifications of Screen pipe:

Size:OD:114-219mm*5-22mm

The external diameter is ranged from 89mm to 1200mm.

Slot size(mm):  0.10, 0.15, 0.2, 0.25, 0.30-3, we can also custom the products based on your requirements. The opening area can reach 60% at most.
Open area: Up to 60% (high flow, low-pressure drop)
Material: 304,304L, 316, 316L and other stainless steel wire; low carbon steel,low carbon galvanized steel (LCG) steel treated with anticorrosion coating,, plastic spray, stainless steel;
Unit Length :up to 6 meters
Base pipe:N/L 80 or J55 etc.
End connection: Welded ring, Threads coupling(STC, LTC, BTC), Flange

Specification

Technical parameters of Screen pipe

Size
(inch)

OD  (mm)

Slots (inch)

Length (meter)

Collapse strength (psi)

Tensile weight (Ton)

Wrap(thick*deep) (mm)

Rods (mm)

4

117

0.04

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.04

3

395

6

2.3*3.0

3.8mm/22

6

168.3

0.04

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.01

3

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.02

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.04

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.01

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.02

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.04

3

167

11

3.0*5.0

3.8mm/50

Character:

  1. Screens with high open area are more suitable for the constructioni of high-quality water wells, oil wells and gas wells.
  2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
  3. Reduce the abrasion of the pump under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
Production process

Packaging pictures

Inquiry

If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
